DIN 11852/R2 Lasbocht 90° met rechte stukken (426)
DIN 11852 Range 2 - 304/304L - 316L

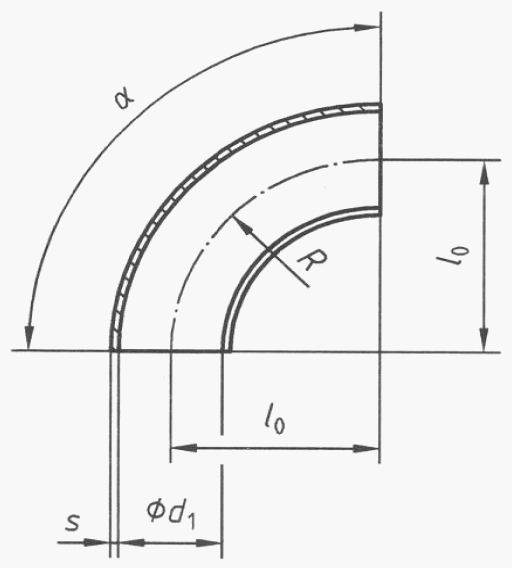

Lasbocht 90° met rechte stukken (426)
|
nA |
OD (mm) |
S (mm) |
R (mm) |
D1 (mm) |
L1 | L3 |
BESTEL CODE | |
|---|---|---|---|---|---|---|---|---|
|
10 |
13.00 |
1.50 |
26.00 |
10.00 |
38.00 |
12.00 |
N000433000 | 304/304L |
| N900433000 | 316L |
|||||||
| 15 |
19.00 |
1.50 |
35.00 |
16.00 |
47.00 |
12.00 |
N000433001 |
304/304L |
| N900433001 |
316L | |||||||
| 20 |
23.00 |
1.50 |
40.00 |
20.00 |
52.00 |
12.00 |
N000433002 |
304/304L |
| N900433002 |
316L | |||||||
| 25 |
29.00 |
1.50 |
50.00 |
26.00 |
70.00 |
15.00 |
N000433003 |
304/304L |
| N900433003 |
316L | |||||||
| 32 |
35.00 |
1.50 |
55.00 |
32.00 |
78.00 |
18.00 |
N000433004 |
304/304L |
| N900433004 |
316L | |||||||
| 40 |
41.00 |
1.50 |
60.00 |
38.00 |
85.00 |
20.00 |
N000433005 |
304/304L |
| N900433005 |
316L | |||||||
| 50 |
53.00 |
1.50 |
70.00 |
50.00 |
97.00 |
22.00 |
N000433006 |
304/304L |
| N900433006 |
316L | |||||||
| 65 |
70.00 |
2.00 |
80.00 |
66.00 |
110.00 |
25.00 |
N000433007 |
304/304L |
| N900433007 |
316L | |||||||
| 80 |
85.00 |
2.00 | 90.00 |
81.00 |
118.00 |
28.00 |
N000433009 |
304/304L |
| N900433009 |
316L | |||||||
| 100 |
104.00 |
2.00 | 100.00 |
100.00 |
140.00 |
35.00 |
N000433011 |
304/304L |
| N900433011 |
316L | |||||||
| 125 |
129.00 |
2.00 | 187.50 |
125.00 |
- |
- |
N000433012 |
304/304L |
| N900433012 |
316L | |||||||
| 150 |
154.00 |
2.00 | 225.00 |
150.00 |
- |
- |
N000433013 |
304/304L |
| N900433013 |
316L | |||||||
| 200 |
204.00 |
2.00 | 300.00 |
200.00 |
- |
- |
N000433015 |
304/304L |
| N900433015 |
316L |
